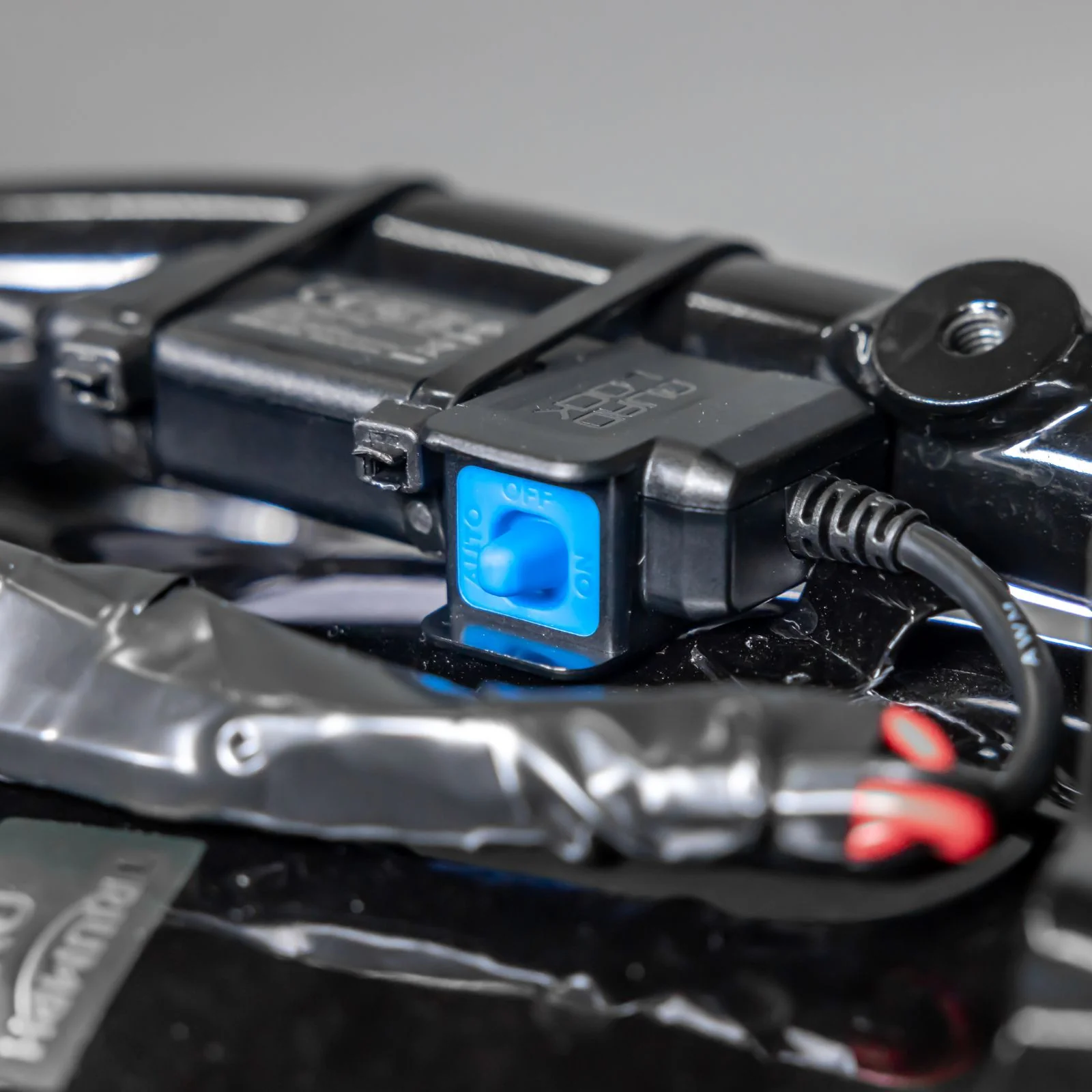

The Quad Lock® Waterproof 12V to USB Smart Adaptor includes everything you need to power your Quad Lock® Weatherproof Wireless Charging Head from your motorcycle, boat, or caravan. It features multiple switching states, allowing you to easily toggle between On, Off, and Auto modes. Use the On mode when connecting the Smart Adaptor to a constant 12V – 24V supply, such as in a boat or caravan. The Auto function keeps the device off until the input voltage rises above 13.5V and turns it off when the voltage drops below 12.5V, making it ideal for motorcycles, ATVs, and more to avoid battery drain. The Smart Adaptor also includes Reverse Polarity Protection, which safeguards your battery if the Ring Terminal Cables are connected incorrectly, and an in-line 3A rated fast blow fuse to protect against battery drain in case of a fault.

What’s Included:

• 1 x Quad Lock® Waterproof 12V to USB Smart Adaptor with 1.5M USB-A female port and 10cm SAE cable hard wired
• 1×1M SAE to ring terminal cable with an in-line fuse
• 1 x USB-A sealing boot for USB-A to USB-C cable supplied with Weatherproof Wireless Charging Head
• 5 x Zip ties

Tech Specs:

• Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A)
• Input: 12V – 24V DC
• Auto switching mode provides power only when engine is running to avoid battery drain
• Reverse polarity protection
• In-line safety fuse
• Waterproof 12V to USB Smart Adaptor housing made from polycarbonate construction
• TPU Toggle Switch
• PVC cables, SAE, USB-A and Ring Terminals over-moulds
• Brass Ring Terminals
• IP66 rated Waterproof 12V to USB Smart Adaptor unit and cable housing
• IP64 rated USB seal boot cover
